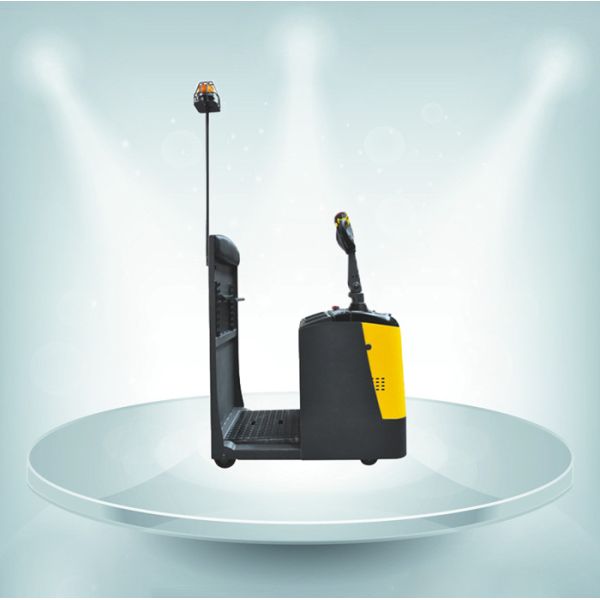

Stand Driving Electric Tow Tractor Powerful Drive Motor 2 Tons Rated Traction Weight

Name: Stand Driving Electric Tow Tractor Powerful Drive Motor 2 Tons Rated Traction Weight
Brand: REACH
Price: 4670 USD

Wholesale Stand Driving Electric Tow Tractor Powerful Drive Motor 2 Tons Rated Traction Weight from china suppliers

Brand Name : REACH

Model Number : QDD20H

Certification : CE, TUV

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : USD 4670 per set

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 25 - 30 days

Packaging Details : Nude

Rated traction weight (60 minutes rated) : 2000kg

Operate type : standing

Max. rated tractive force : 2000N

Aisle width : 1473mm

Min. turning radius : 1070mm

Travel speed : 7/7.1km/h

Battery : 24V210AH

Service weight : 520kg

Contact Now

Stand driving 2tons electric tow tractor with powerful drive motor

Quick Details:

Drive type: electric

Load capacity: 2000kg

Overall length: 1273mm

Overall width: 773mm

Aisle width: 1473mm

Min. turning radius: 1070mm

Travel speed: 7/7.1km/h

Battery: 24V210AH

Advantages:

Smoothly steering system is easy operation, flexibly and more safely.
With Powerful drive motor, max. grade ability can reach 8% with full towing capacity 2000kg.
Standing driving, floor is No-slip with anti-vibration function, back rest with reversible cushions, reduce fatigue, back cushion height can be adjustable according to the driver’s height.
Deadman brake service (The automatic power-off function works when the driver leaves the truck).
Stepless speed control.
With warning light.
Side way battery.
Built-in charger.

Also have 2000kg, 3000kg, 4500kg capacity can choose.

SPECIFICATIONS
Model		QDD20H
Drive type		electric
Operate type		standing
Load capacity	kg/lbs	2000/4409
Max. rated tractive force	N	2000
Drawbar center height	mm/inch	280/11
Axle loading, laden front/rear	kg/lbs	360/160(794/353)
Axle loading, unladen front/rear	kg/lbs	380/140(838/309)
Tyre size, front	mm/inch	25070/102.75
Tyre size, rear	mm/inch	20050/82
Height of tiller in drive position min./max.	mm/inch	1010/1350(39.76/53.1)
Overall length	mm/inch	1273/50
Overall width	mm/inch	773/30.4
Aisle width	mm/inch	1473/58
Turning radius	mm/inch	1070/42.1
Travel speed, laden/unladen	km/h	7/7.1
Battery	V/Ah	24/210
Service weight	kg/lbs	520/1146
